M12 FUEL™ 140mm Circular Saw (Tool Only)

M12FCS4420
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

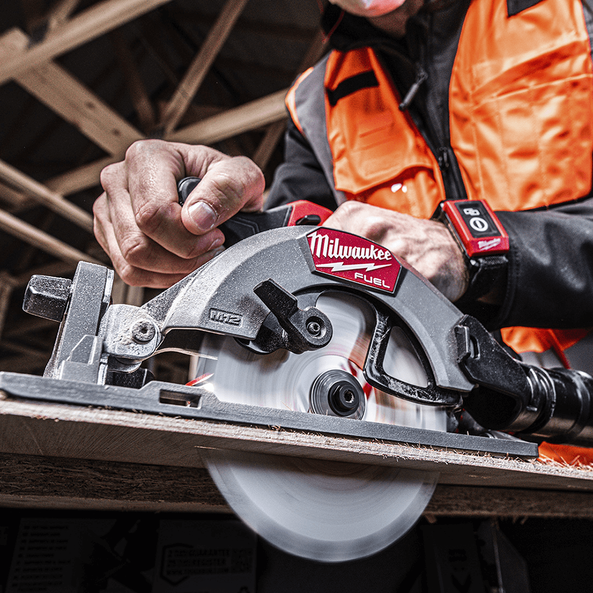

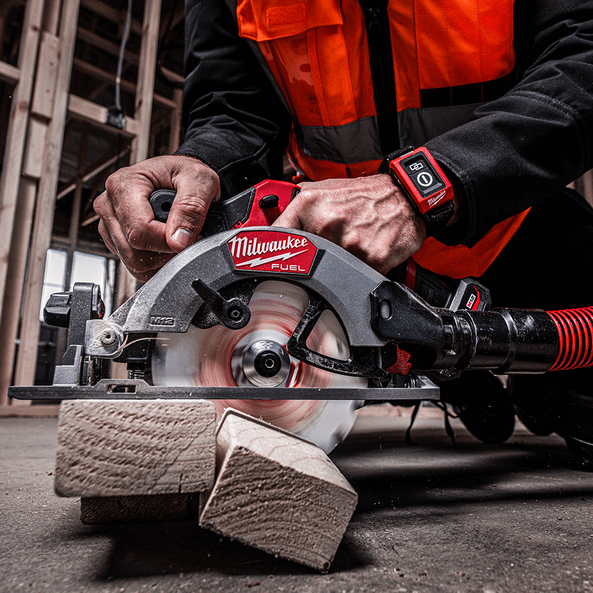

The M12 FUEL™ 140mm Circular Saw is designed for the professional. Utilising the POWERSTATE™ brushless motor, the saw delivers the performance to make quick work of ripping and cross-cutting sheet goods as well as cross-cutting dimensional timber. With its compact and lightweight design, the saw is extremely portable, making this a great solution for cuts in smaller spaces, overhead, and when the capacity of a larger saw is not needed. The M12™ REDLITHIUM™ HIGH OUTPUT™ 5.0Ah Battery delivers up to 190 cuts in 38 x 90 mm SPF, delivering the runtime needed to keep users productive on site. The latest in 12V cordless technology, LED light, cut line blower, and integrated rafter hook make this a powerful, compact, and convenient cutting solution.

Read More
Specifications What's Included Resources Reviews Related

Specifications

Features

Features

POWERSTATE™ Brushless Motor: Purpose built brushless motor provide the power and torque needed for cutting applications
REDLINK PLUS™ Intelligence Provides optimised performance and overload protection using total system communication between tool, battery and charger
Compact size and weight for greater access when cutting, portability and reduced fatigue
Up to 190 cuts per charge in 38 x 90 mm SPF using an M12HB5 battery
LED light to illuminate cut line in low light
Cut line blower to increase visibility

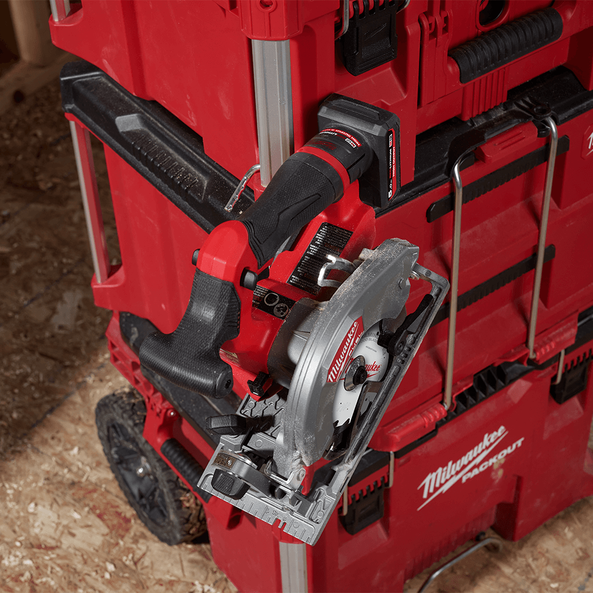

Integrated adjustable rafter hook to hang and store saw when not in use
Included vacuum adaptor to minimise mess and reduce cleanup time
Blade break to stop blade quickly once trigger is released

Specifications

Specifications

Platform M12 FUEL™
Voltage 12V
RPM 3,850
LED Light Yes
Maximum Bevel Capacity 50°
Max Cutting Depth At 90°: 44.45mm | At 45°: 31.75mm
Arbor Size 20mm
Dimensions 290 x 155 x 175mm
Weight 2kg
Warranty 5 Years
Cut Line Blower Yes
Blade Sizes 136 or 140 mm (5-3/8" or 5-1/2")

What's Included

What's Included

(1) M12 FUEL™ 140mm Circular Saw [M12FCSS420]
(1) 140mm (5-1/2") 18T Wood Circular Saw Blade Framing for M12 FUEL™ 140mm Circular Saw [4932471310]
(1) Blade Wrench
(1) Vaccum Adaptor
(Not Included) Battery and Charger
