M18 FUEL™ Laminate Trimmer Kit
M18FTR302B
M18 FUEL™ Laminate Trimmer Kit
Limited Time Only
Product Details
The M18 FUEL™ Laminate Trimmer combines power, speed and accurate depth adjustments to deliver clean accurate cuts in a variety of materials and applications. The Laminate Trimmer leverages our POWERSTATE Brushless Motor and REDLINK™ PLUS electronics to deliver the power of corded 1.25 horsepower laminate trimmers and best-in-class 31,000 RPM providing users with power and speed for clean, quality cuts in hard materials. The Laminate Trimmer kit includes two M18™ REDLITHIUM™ 3.0Ah batteries, a plunge base, charger, and contractor bag for convenient storage and portability.
Specifications

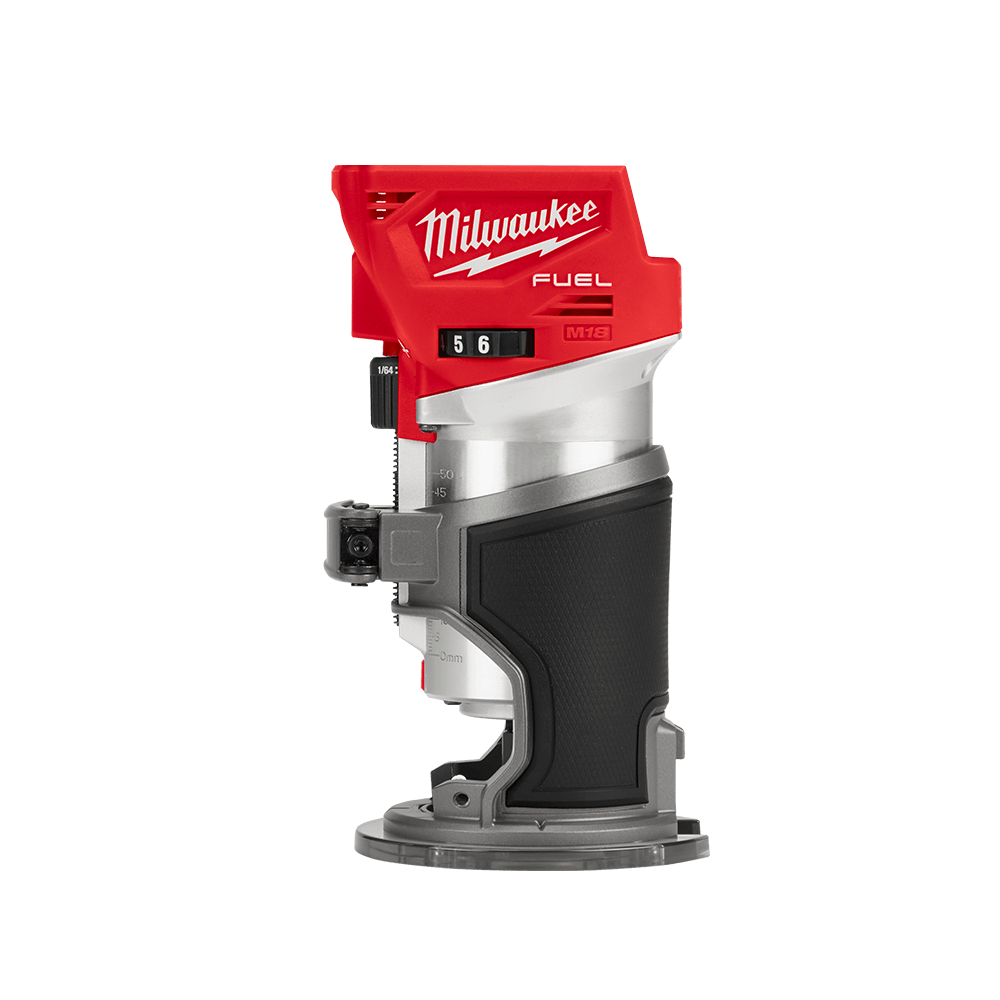

M18 FUEL™ Laminate Trimmer
M18FTR-0
M18 FUEL™ Laminate Trimmer
M18FTR-0
In Stock
Features
Macro adjust button allows for fast macro-adjustments.
Fine adjustment screw allows for precise adjustments beyond 0.4mm increments.
POWERSTATE™ Brushless Motor: Power of corded laminate trimmers and higher rpm to complete cuts in hardwoods.
Tool-free spindle lock provides easy bit changes with a collet wrench.
Compatible with Milwaukee plunge base and offset base.
REDLINK™ PLUS intelligence ensures maximum performance and protects from overloads, heating and over-discharge.
Variable speed dial range between 10,000 and 31,000rpm, providing precise control for clean edges and details.
Specifications
Platform
M18 FUEL™
Voltage
18V
Type
Cordless
Speed
6 Settings
RPM
10,000-31,000
Standard Sub-Base Opening
38mm (1.5")
Collet Diameter
6.35mm (1/4") & 6mm
Adjustment Positions
0.4mm (1/64")
Depth
38mm (1.5")
Height
175mm
Weight
1.36kg
Warranty
5 Years

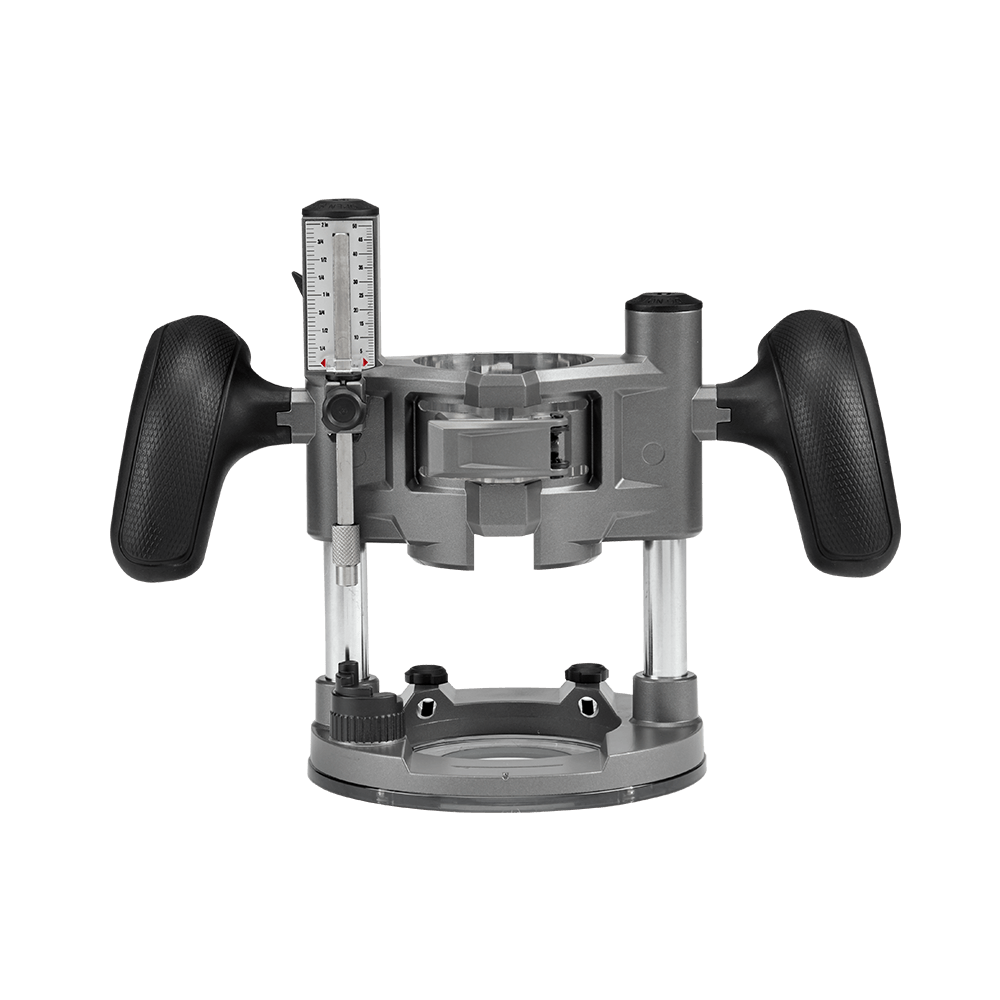

Laminate Trimmer Plunge Base
48105601
Laminate Trimmer Plunge Base
48105601
In Stock
Features
Compatible with the MILWAUKEE® M18 FUEL™ Laminate Trimmer (M18FTR-0)
Micro adjust depth rod
Compatible with MILWAUKEE® M18 FUEL™ 146mm (5-3/4") template guide sub-base plate
6-step depth stop turret with 3.2mm (1/8") step increments
50mm (2") of plunge depth
Heavy duty machined aluminium body for stable plunges
Specifications
Depth Adjustments
3.2mm (1/8") increments
Preset Depth Stop
6 Stops
Plunge Depth Capactiy
50mm (2")
Base Diameter
146mm (5.75")
Opening Diameter
50mm (2")
Weight
1.45kg
Resources

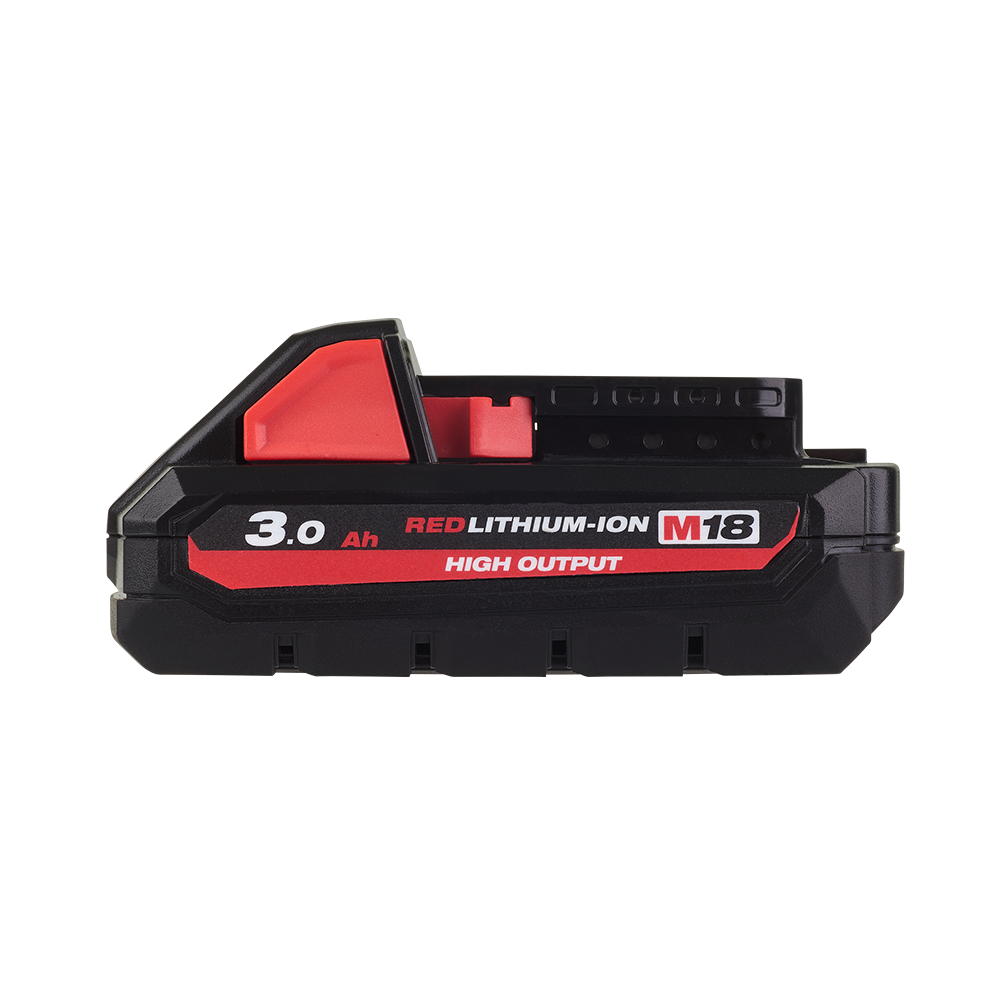

M18™ REDLITHIUM™ HIGH OUTPUT™ 3.0Ah Battery
M18HB3
M18™ REDLITHIUM™ HIGH OUTPUT™ 3.0Ah Battery
M18HB3
In Stock
Features
REDLINK™ Intelligence: Our battery circuitry provides optimised performance and overload protection using total system communication between tool, battery and charger.
Fuel gauge onboard: displays remaining run-time
Compatible with all M18™ tools
Best-in-class construction: Offers long-lasting performace and the best protection against jobsite, weather and environmental
Specifications
Platform
M18™
Voltage
18V
Battery Type
HIGH OUTPUT™
Amps
3.0Ah
Weight
0.69kg
Warranty
2 Years
M12™ & M18™ Rapid Charger
M12-18FC
M12™ & M18™ Rapid Charger
M12-18FC
In Stock
Features
Charges batteries up to 40% faster.
Charges all M12™ and M18™ batteries.
Sequential charging: automatically charges the second inserted pack once the first pack is fully charged.
REDLINK™ Intelligence: charger communicates with the battery pack to ensure optimum performance and extend life
M18™ REDLITHIUM™ 2.0 Ah / 4.0 Ah / 5.0 Ah battery packs recharge in 27 min / 48 min / 60 min or less
M18™ REDLITHIUM™ HIGH OUTPUT™ 3.0 Ah / 6.0 Ah / 8.0 Ah / 12.0 Ah battery packs recharge in 35 min / 65 min / 83 min / 130 min or less
M12™ REDLITHIUM™ 2.0 Ah / 3.0 Ah / 4.0 Ah / 6.0 Ah battery packs recharge in 30 min / 46 min / 60 min / 103 min or less
Specifications
Platform
M18™ / M12™
Voltage
12v and 18v
Weight
0.8kg
Warranty
2 Years
