REDLITHIUM™ USB Rechargeable 3 Point Laser Kit

L43PL-301C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 155ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res
REDLITHIUM™ USB Rechargeable 3 Point Laser Kit, , hi-res

REDLITHIUM™ USB Rechargeable 3 Point Laser Kit

L43PL-301C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 155ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

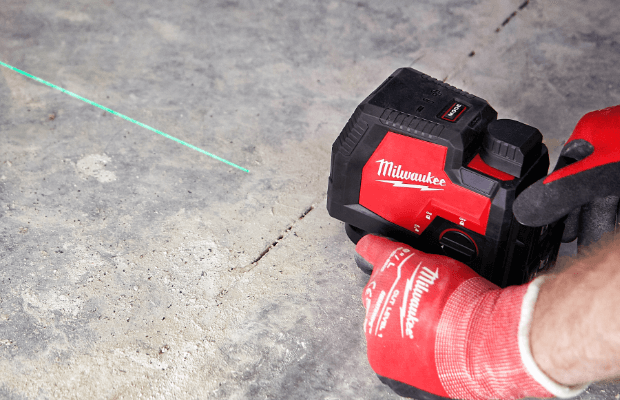

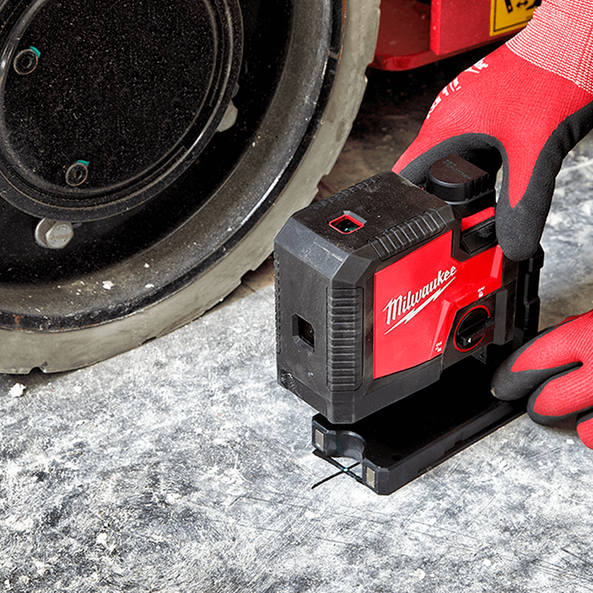

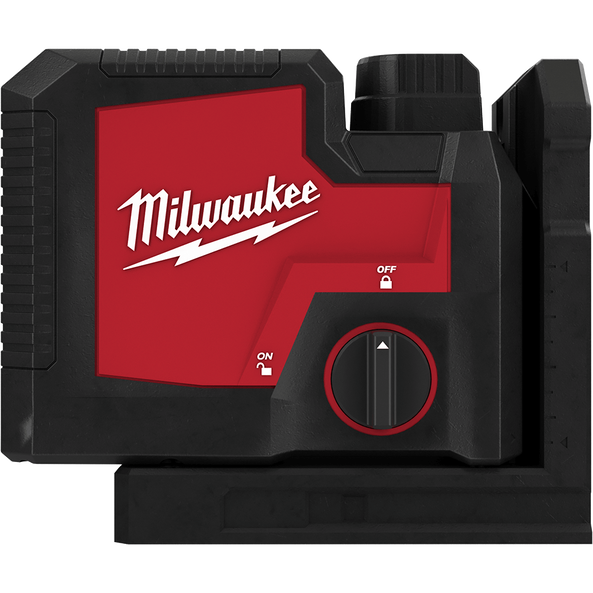

The REDLITHIUM™ USB Rechargeable 3 Point Laser is powered by REDLITHIUM™ USB, delivering users maximum run-time and uncompromised visibility. The high-intensity laser beams allow the green points to be visible up to 45 meters for fast, accurate point transfer. The integrated adjustable clearance bracket enables the laser level to easily fit over steel stud track and also creates clearance for marking the floor. The REDLITHIUM™ USB Rechargeable 3 Point Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment. Users can charge REDLITHIUM™ USB Batteries inside the laser via a Micro USB or swap it out with additional REDLITHIUM™ USB Batteries for virtually no downtime.

Read More
Specifications What's Included Resources Reviews

Specifications

Features

Features

15 hours of runtime on a single charge using REDLITHIUM™ USB 3.0Ah battery
Visibility range of up to 45 m
High intensity green beams provide up to 4x the brightness compared to red lasers
1 m drop rating
IP 54 rating to protect the laser from harsh jobsite conditions
Internally charges REDLITHIUM™ USB batteries via micro-USB port
Fuel gauge on the top and side of the laser allows for fast checking of battery charge
Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

Specifications

Specifications

Platform REDLITHIUM™ USB
Kit Yes
IP Ratings IP54​
Dimensions 152 x 71 x 127 mm​
Weight 0.82 kg
Warranty 2 Years

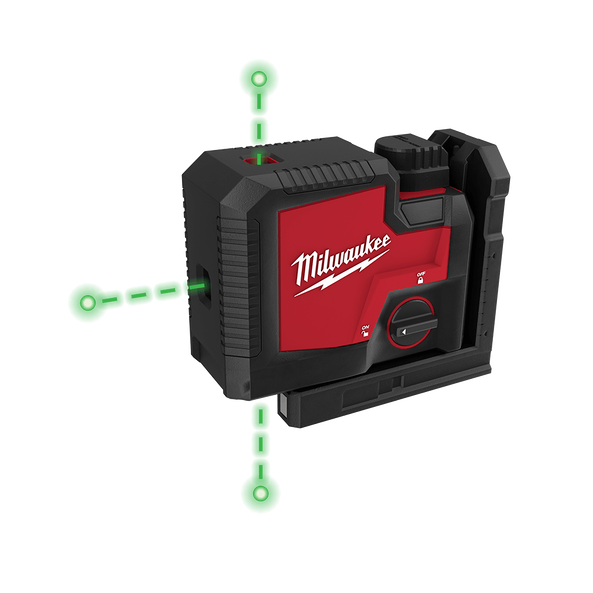

Number of Beams​ 3 Points​
Locking Pendulum​ Yes​
Self-Leveling​ ± 4° Tilt​
Accuracy ± 3.18 mm over 10 m​
Impact Resistant​ 1 m​
Working Range​ 45 m​
Thread Mount​ 1/4"-20​

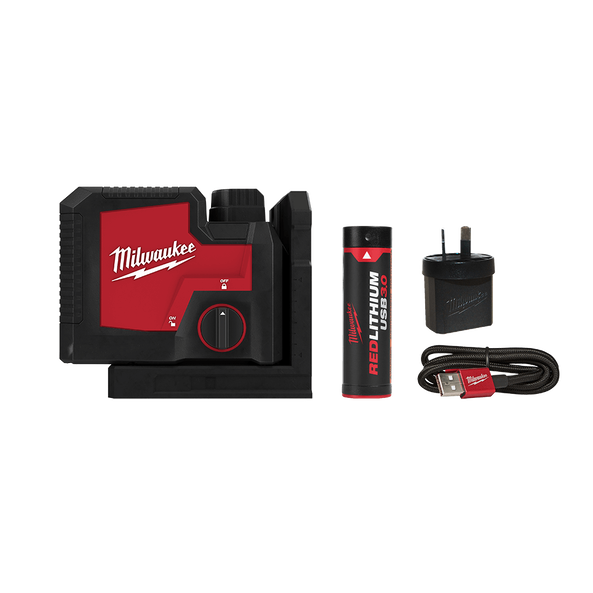

What's Included

What's Included

(1) REDLITHIUM™ USB Rechargeable 3 Point Laser (L43PL)
(1) L4 B3 REDLITHIUM™ USB 3.0Ah Battery
(1) Heavy Duty Plug
(1) AC Adaptor
(1) Carrying Case

REMOVABLE, RECHARGABLE BATTERY

Powered by REDLITHIUM™ USB battery

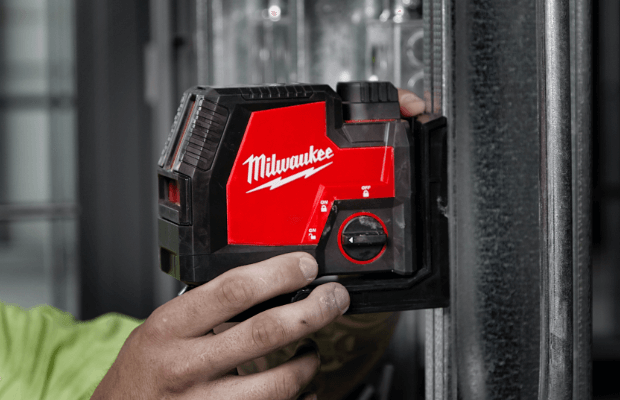

VERSATILE MOUNTING TECHNOLOGY

Fast and easy alignment and adjustment

HIGH INTENSITY GREEN LASER
