Milwaukee M18 FUEL™ 8 Piece Power Pack 8A4 M18FPP8A4503B

M18 FUEL™ 8 Piece Power Pack 8A4

M18FPP8A4503B

Specifications

M18 FUEL™ 13mm Hammer Drill/Driver (Tool Only)

M18FPD30

M18 FUEL™ 13mm Hammer Drill/Driver (Tool Only)

M18FPD30

View Full Details

Features

POWERSTATE™ Brushless Motor delivers 158 Nm of Max Torque with 2,100 RPM and 33,000 BPM

Redesigned trigger mechanism with improved fitment and smoother acceleration provides the ultimate trigger control

Offers an enhanced safety control mode, AUTOSTOP™, preventing over-rotations in bind-up situations

New M-Clutch design enables the tool to handle a wider range of torque settings with improved drilling and fastening performance

Specifications

Platform M18 FUEL™

Torque 158 Nm

RPM 0 - 500 / 0 - 2,100

BPM 0 - 33,000

Chuck Type 13mm Metal Chuck

Length 175mm

Weight 1.5kg

Warranty 5 Years

Resources

General Power Tool Safety Warning

Operator's Manual (M18FPD30)

M18 FUEL™ 1/4" Hex Impact Driver (Tool Only)

M18FID30

M18 FUEL™ 1/4" Hex Impact Driver (Tool Only)

M18FID30

View Full Details

Features

Enhanced motor gives the M18FID3 0 - 4,400 IPM and 226 Nm of Max Torque

Provides the user the ability to deliver power to more demanding applications back-to-back

Enhanced motor delivers an improved 3,900 RPM when compared to previous generations

Provides the user with increased range of speed to complete application fast and with minimal downtime

Redesigned trigger mechanism with improved fitment and smoother acceleration

Tri-LED lighting illuminating the area of work while eliminating shadows

4-Mode Drive Control provides users with greater control over the output speed and power

Specifications

Platform M18 FUEL™

Torque 226 Nm

IPM 0 - 1,400 / 3,600 / 4,400 / 4,400

RPM 0 - 1,700 / 3,000 / 3,900 / 3,900

Chuck Type 1/4" Hex

Drive Control 4 - Mode

Length 113.5mm

Weight 1.0kg

Warranty 5 Years

Single Hand Bit Insertion Yes

Tri-LED Yes

Resources

General Power Tool Safety Warning

Operator's Manual (M18FID30)

M18 FUEL™ 165mm Circular Saw (Tool Only)

M18FCS5520

NEW

M18 FUEL™ 165mm Circular Saw (Tool Only)

M18FCS5520

View Full Details

Features

REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating, and over-discharge

Up to 300 cuts per charge on an M18™ REDLITHIUM™ HIGH OUTPUT™ 6.0Ah Battery (M18HB6)

57 mm (0 to 2-1/4”) cut capacity

Bevel detents at 22.5° and 45°

Depth detents at 1/2", 3/4", and 1-1/2"

Integrated belt hook for easy transportation on the jobsite

Integrated dust port on guard and included vac adaptor

LED light for increased accuracy and visibility

Integrated rafter hook for easy storage

Magnesium shoe and guards for maximum durability

Electric brake to stop blade after trigger is released

Specifications

Platform M18 FUEL™

Voltage 18V

No Load RPM 6,000

LED Light Yes

Maximum Bevel Capacity 50°

Max Cutting Depth Depth of cut at 90°: 0 to 57 mm (0 to 2-1/4") | Depth of cut at 45°: 0 to 40 mm (0 to 1-9/16")

Arbor Size 20mm

Dimensions 305 x 178 x 195mm

Weight 2.86kg

Warranty 5 Years

Cut Line Blower Yes

Blade Sizes 165mm (6-1.2")

Resources

General Power Tool Safety Warning

Operator's Manual (M18FCS5520)

M18 FUEL™ 125mm (5") Angle Grinder with Deadman Paddle Switch (Tool Only)

M18FAG125XPD-0

M18 FUEL™ 125mm (5") Angle Grinder with Deadman Paddle Switch (Tool Only)

M18FAG125XPD-0

View Full Details

Features

Next generation M18CAG125XPD with electronic and ergonomic upgrade

More compact, lightweight and balanced design allow for more comfortable and manoeuvrable use

POWERSTATE™ Brushless Motor provides 8,500 RPM

REDLINK™ PLUS Electronic Intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection, and productivity

E-Clutch with kickback protection

FIXTEC™ System allows 100% tool-free wheel change

Paddle switch design provides increased comfort and ease-of-use in various positions

Includes 125mm (5") Type 27 Guard and Type 1 Clip-On Guard

Specifications

Platform M18 FUEL™

No Load RPM 8,500

Vibration Reduction Anti-vibration Handle

Spindle Size M14

Kickback Prevention Yes

Tool Free Guard Yes

Type 1 Guard Yes

Type 27 Guard Yes

Disc Size 125mm (5")

Switch Type Paddle Switch, No-Lock

Resources

General Power Tool Safety Warning

Operator's Manual (M18FAG125XPD-0)

M18 FUEL™ 26mm SDS Plus Rotary Hammer (Tool Only)

M18FH-0

M18 FUEL™ 26mm SDS Plus Rotary Hammer (Tool Only)

M18FH-0

View Full Details

Features

3 mode (Rotary Hammer, Hammer Only, and Rotary Only)

POWERSTATE™ Brushless Motor delivers fast drilling

2.7 J impact energy for hard hitting performance

Anti-Vibration System (AVS) for maximum user comfort

AUTOSTOP™ Kickback Control senses bind-up and prevents over-rotation

REDLINK™ PLUS Intelligence integrates full-circle communication between tool, battery and charger to protect from overloads, over-heating and over-discharge

Integrated LED light for illuminating dark workspaces

Compatible with M18 FUEL™HAMMERVAC™ 26mm Dedicated Dust Extractor (M18FDEX)

Adjustable depth gauge rod for accurate hole depths

Specifications

Platform M18 FUEL™

Max RPM 1,330

BPM 4,800

Impact Energy 2.7 J

Vibration Reduction Yes

Drill Capacity 26mm (1")

Kickback Prevention Yes

Length 296 mm

Weight 3.1 kg

Warranty - Tool 5 Years

Resources

General Power Tool Safety Warning

Operator's Manual (M18FH)

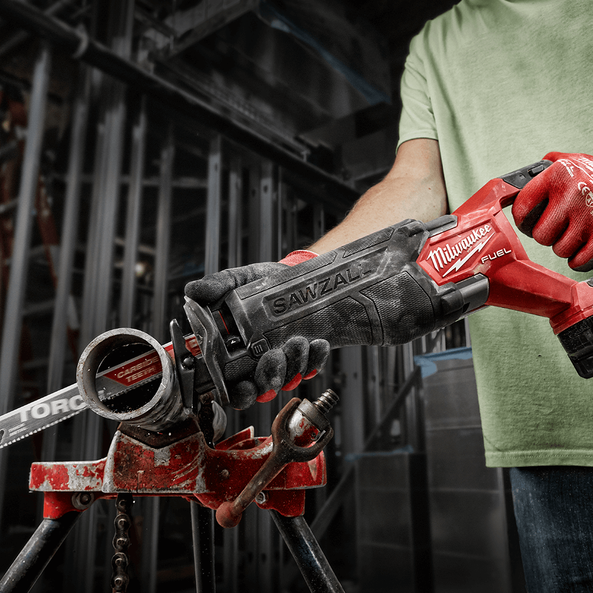

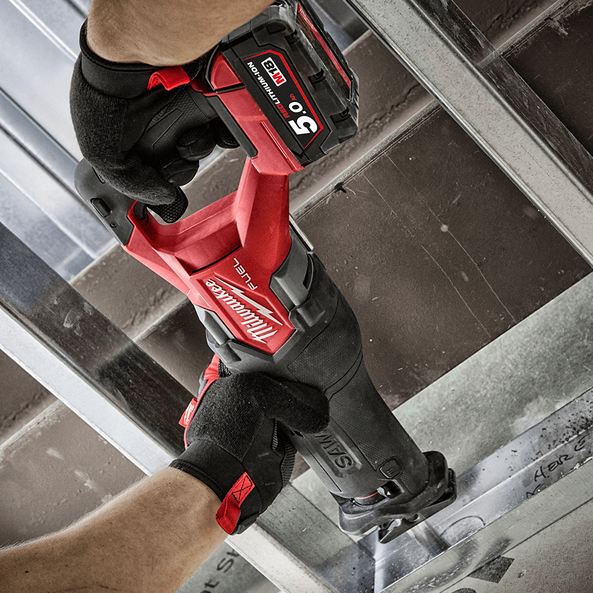

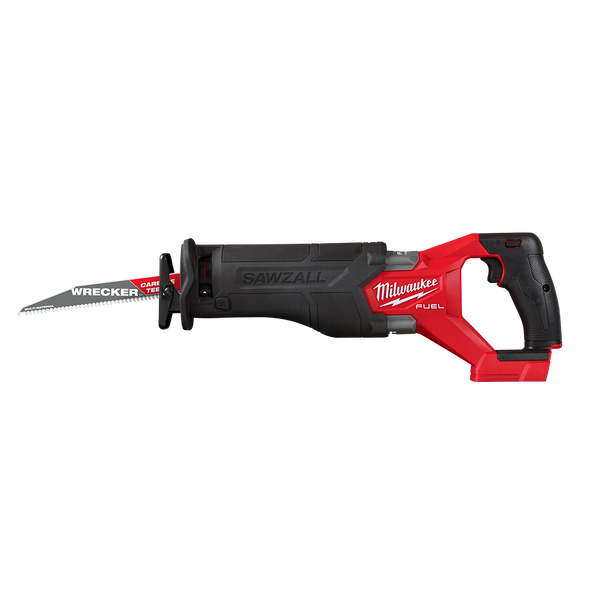

M18 FUEL™ SAWZALL™ Reciprocating Saw (Tool Only)

M18CSX2-0

M18 FUEL™ SAWZALL™ Reciprocating Saw (Tool Only)

M18CSX2-0

View Full Details

Features

POWERSTATE™ Brushless Motor provides fast cutting speed and power through tough applications

Anti-corrosion blade clamp delivers durability with less downtime due to corrosion

Metal reinforced battery connection provides improved durability and battery retention over life of the tool

Built-in LED light illuminates work surface while cutting

Lever action QUIK-LOK™ blade clamp provides fast, easy blade changes

REDLINK™ PLUS Intelligence provides optimised performance and overload protection

Adjustable shoe

Hang hook

Specifications

Platform M18 FUEL™

Voltage 18V

SPM 0 - 3,000

LED Light Yes

Blade Clamp QUIK-LOK™ Universal

Keyless Adjustable Shoe Yes

Stroke Length 32 mm (1-1/4")

Hang Hook Yes

Keyless Blade Clamp Yes

Length 434 mm

Weight 3.1 kg (Tool Only)

Warranty 5 Years

Resources

General Power Tool Safety Warning

Operator's Manual (M18CSX2-0)

M18™ LED Work Light (Tool Only)

M18TLED-0

M18™ LED Work Light (Tool Only)

M18TLED-0

View Full Details

Features

Sealed aluminium head: designed for impact and weather resistant durability.

135° Rotating head provides flexible, focused illumination.

Integrated hook: leaves both hands free for work anywhere on the job site.

Compact design for versatile use.

Specifications

Platform M18™

Voltage 18V

Type Cordless

Battery M18™ REDLITHIUM™

Lumens 160

Hang Hook Yes

Length 216mm

Weight 320g

Warranty 5 Years

Resources

General Power Tool Safety Warning

Operator's Manual (M18TLED-0)

M18 FUEL™ Multi-Tool (Tool Only)

M18FMT-0

M18 FUEL™ Multi-Tool (Tool Only)

M18FMT-0

View Full Details

Features

POWERSTATE™ Brushless Motor, combined with 10,000 to 20,000 OPM delivers fast cut speed

REDLINK™ PLUS Intelligence enables communication between tool and batteries, allowing for optimal levels of performance, protection, and compatibility

Auto-Load feature allows user to start precise cuts slowly, and automatically ramp up to the highest speed under load

Variable Speed Dial with 10 settings for adjusting speed to application

Vibration dampening technology for low full tool vibration

4.2° oscillation angle

180° span LED for visibility in low-light situations

Tool-free blade change for fast accessory changes
